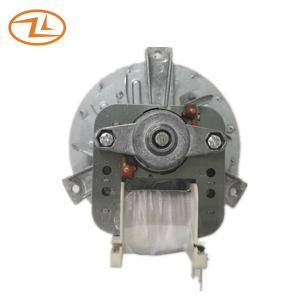

SP100 Convection Oven Fan Motor 230V Single Phase 2800 RPM Motor With Impeller

Name: SP100 Convection Oven Fan Motor 230V Single Phase 2800 RPM Motor With Impeller
Brand: Zhaoli
Price: 1 USD

China SP100 Convection Oven Fan Motor 230V Single Phase 2800 RPM Motor With Impeller wholesale

Brand Name : Zhaoli

Model Number : YJ61-16

Certification : UL, CUL, CE, CCC, VDE, ROHS, REACH

Place of Origin : China

MOQ : 2000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300,000pcs per day

Delivery Time : 20-40 days

Packaging Details : cartons + pallets

Name : oven motor SP100

Rated voltage : 230V 50HZ

Stack size : 60.5x60.5mm

Lamination thickness : 15.5mm

Insulation class : CL.H

Fan blade : φ100mm

Bearing : sleeve bearing

Shaft : customized

Printing : Customized printing

Packing : Customized packing

Motor type : Asynchronous motor

Phase : Single phase

Protect feature : Explosion-proof

Application : small oven

Contact Now

Oven Fan Motor Convection Fan Motor YJ61/200 230V 50HZ CL.H

Specification:

Model	Rated Voltage/ Frequency V/HZ		Free Load		On Load
Model	Rated Voltage/ Frequency V/HZ		Current A	Speed RPM	Current A	Input W	Speed RPM
YJ61-16	230	50	0.120	2800	<=0.2	17+/- 20%	2700+/-200
YJ61-16	120	60	0.250	3200	<=0.4	21+/- 20%	3050+/-200

This is one kind of shaded pole motors, mainly applied in small oven or built-in oven. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.

Drawing:

SP100 Convection Oven Fan Motor 230V Single Phase 2800 RPM Motor With Impeller

Application: Oven

SP100 Convection Oven Fan Motor 230V Single Phase 2800 RPM Motor With Impeller
